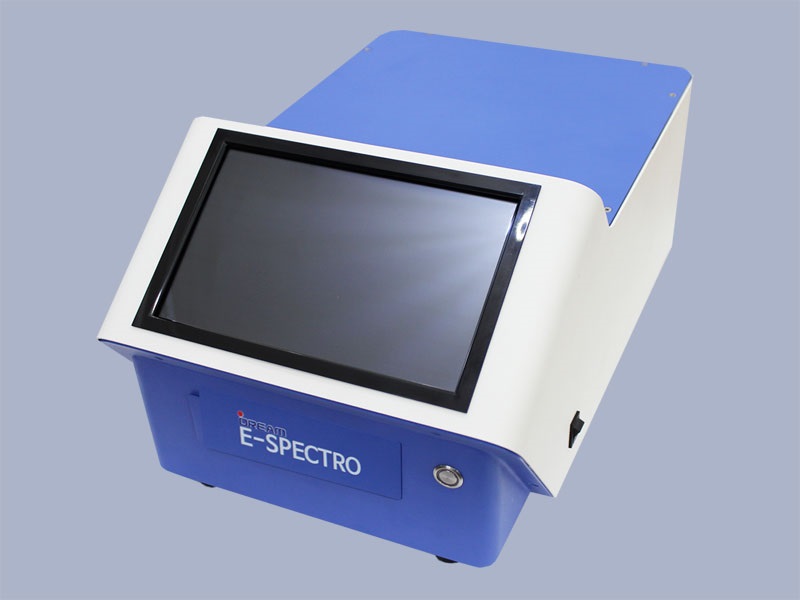

EIA Spectrophotometer
THE RIGHT CHOICE FOR FAST AND RELIABLE READING SYSTEM
PC Incorporated
A built-in computer system provides more convenient user interface such as direct printing, database management, software upgrade & USB connections.
DATA Management
All measured results are registered and managed by calendar form database and easy to be transferred to and modified on your PC as a Microsoft Office Excel CSV file.
LCD Touch Screen
E-Spectro offers you the best uesr friendly graphic interface with the high resolution LCD touch screen.
Internal Device QC
Internal QC for a spectrophotometer itself is basically available just measuring reference QC plate(optional accessory) at each wavelength recommended.
Detectable Range
Maximum of 5 different interference filters can be installed and 3 filters(standard, reference and secondary) can be used for maximum detectable range of 0.0 - 9.0 optical density.
| Specification | Description |
|---|---|
| Standard Filter | 405nm, 450nm,620nm (492nm&540nm) |
| Light Source | 20W Halogen lamp, lamp saver function |
| Decoding Time | Single wavelength< 3sec. Double wavelength< 10sec. |
| Display | 9" full touch screen |
| Indication Range | 0.000 - 3.000 OD (Max. 9.000OD) |
| Accuracy | 0.150OD ±2.0%, 1.000OD ±1.0% 2.500OD ±1.0% |
| Power Supply & Fuse | 110-220V, 50-60Hz, T 1.0A |
| Environmental Condition | 10 - 40℃ |
| Linearity & Reproducibility | ≥ 0.999 and ≤ 0.2% |
| Interface | Serial port RS232, USB and Printer |
| Dimension (mm) | 276(W) x 420(D) x 212(H) |
| Weight | 12 kg |
